Shine Abrasives 1A1 Diamond Wheels For Carbide Sharpening 30''

Name: Shine Abrasives 1A1 Diamond Wheels For Carbide Sharpening 30
Brand: Shine Abrasives
Price: 1 USD

Quality Shine Abrasives 1A1 Diamond Wheels For Carbide Sharpening 30'' for sale

Brand Name : Shine Abrasives

Model Number : 1A1 750mm

Certification : ISO

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 100 PCS per week

Delivery Time : 5 working days

Packaging Details : 1 pcs in one carton or wood box

Shape : 1A1 Straight

Diameter : 30 inch 750mm

Bond Type : Resin

Grit Size : D126

Diamond Rim Size : 40x10mm

HS Code : 6804211000

Contact Now

1A1 Diamond Wheels 30'' For Carbide Coating Cylindrical Grinding

Shine Abrasives Resin bond 1A1 Diamond Wheels 30'' For Carbide Coating OD Surface Grinding

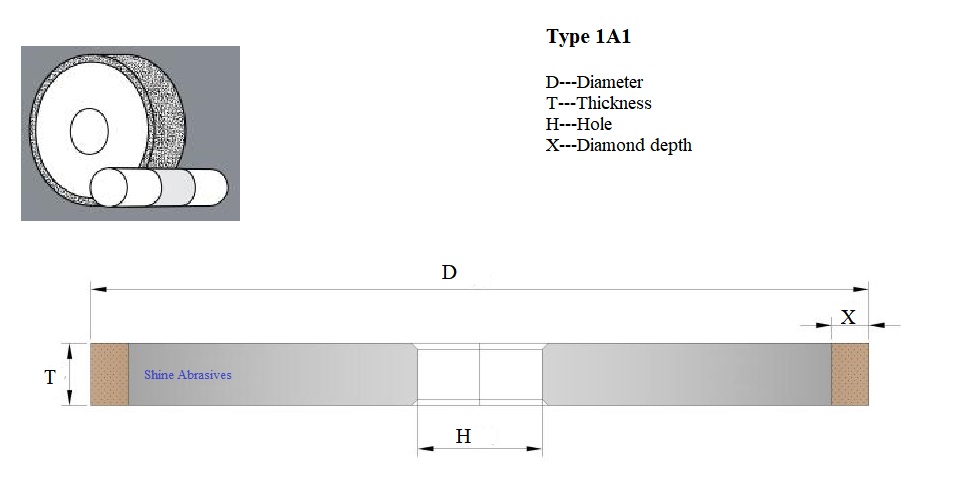

The drawing of Shine Abrasives 1A1 Diamond Wheels 30'' For Carbide Coating Cylindrical Grinding

Shine Abrasives 1A1 Diamond Wheels For Carbide Sharpening 30''

Main sizes form of Shine Abrasives 1A1 Diamond Wheels 30'' For Carbide Coating Cylindrical Grinding

Abrasive Material:Diamond	Bond Type:Resin
CBN Grit:D126	Wheel Diameter: 30inch 750mm
Wheel Bore:305mm	Wheel Weight:60kgs/PC
Wheel Body Material:Aluminum	Diamond Ring Width:10mm
Wheel Thickness:40mm	Concentrate: 100%

Other standard sizes also are available as requested.

Question:

What's Cylindrical grinding?

Cylindrical grinding is usual has 4 essential actions:

The workpiece must be constantly rotating.

The grinding wheel must be constantly rotating too.

The grinding wheel is fed towards and away from the work.

Either the work or the grinding wheel is transversed with respect to the other.

Application picture for reference.

Shine Abrasives 1A1 Diamond Wheels For Carbide Sharpening 30''
